SERAPH
Description
information
| Item: | GR257-Gravel |
| Seat Post: | 27.2mm, support dropper seatpost |
| Material: | Toray T1000+T1100 carbon |
| Head tube: | 1 -1/2 "above and 1 -1/2" below |
| Frame Size： | 48/51/54/56/58/61cm |
| Stem Size: | 70/80/90/100/110/120mm |
| Handlebar size: | 430/450/470/490mm |
| Bottom Bracket: | T47 thread |
| Brake Type | Flat mount Disc |

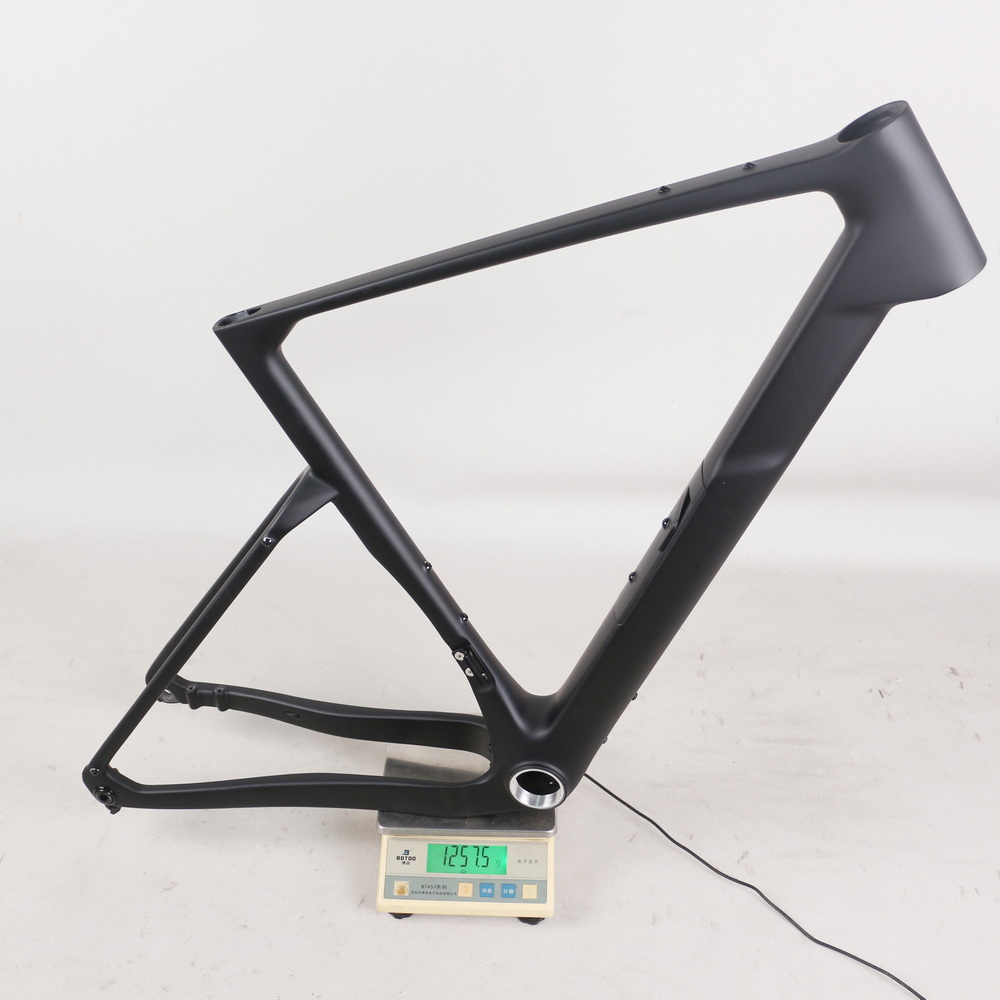

| Frame Weight: | 1257/+-40g (54cm) |

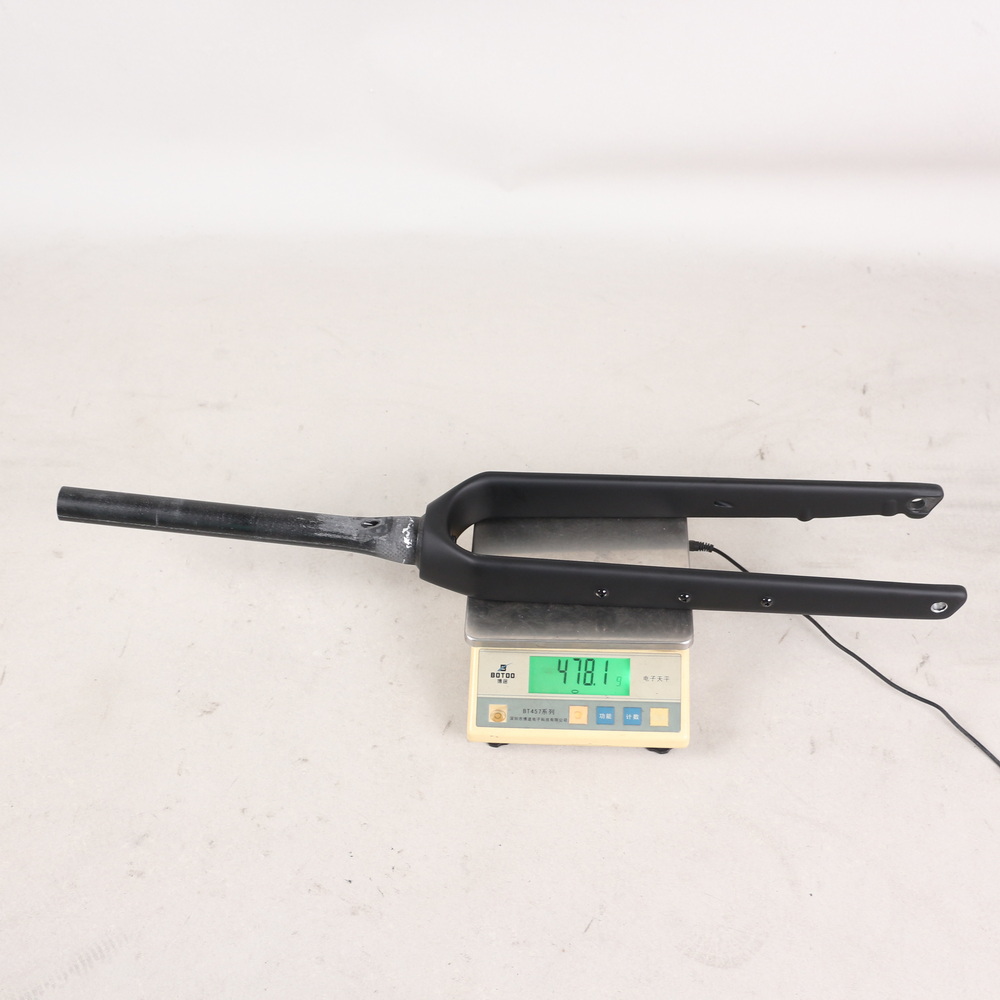

| Fork weight： | 478/+-30g |

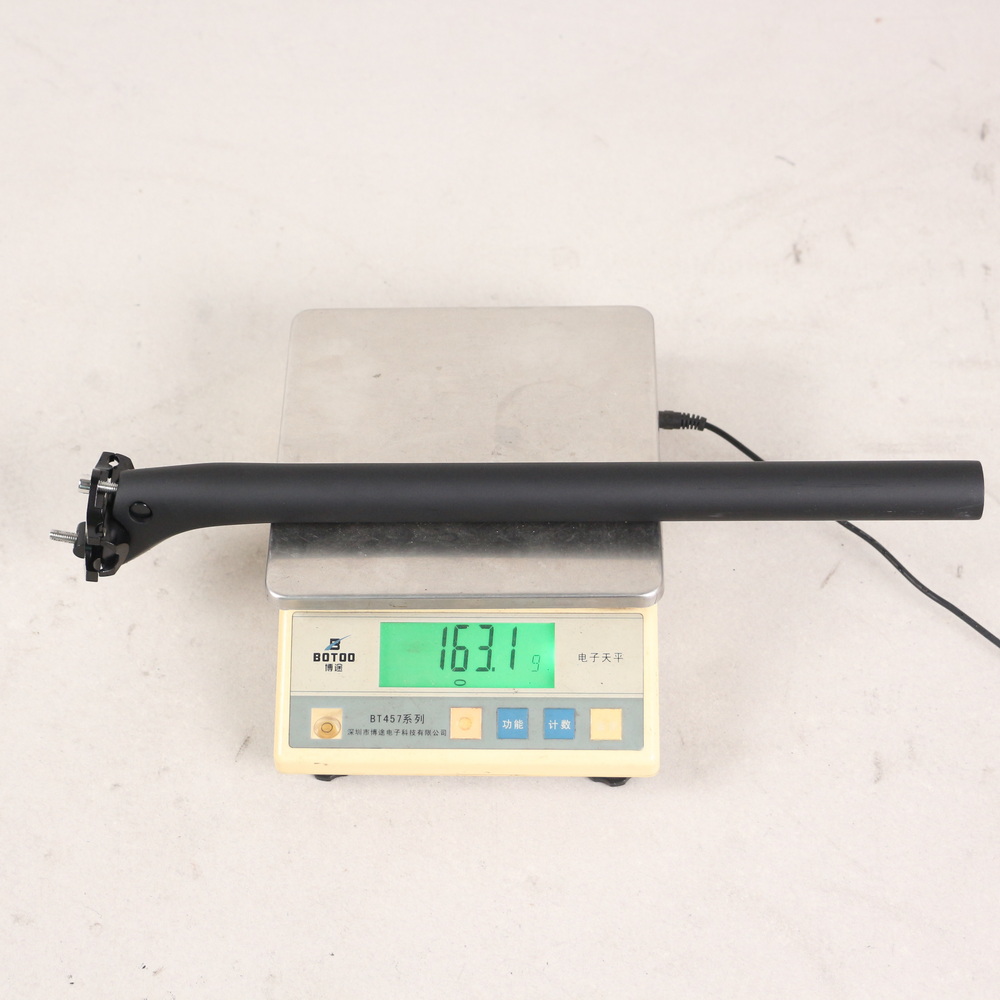

| seatpost weight | 163/+-20g |

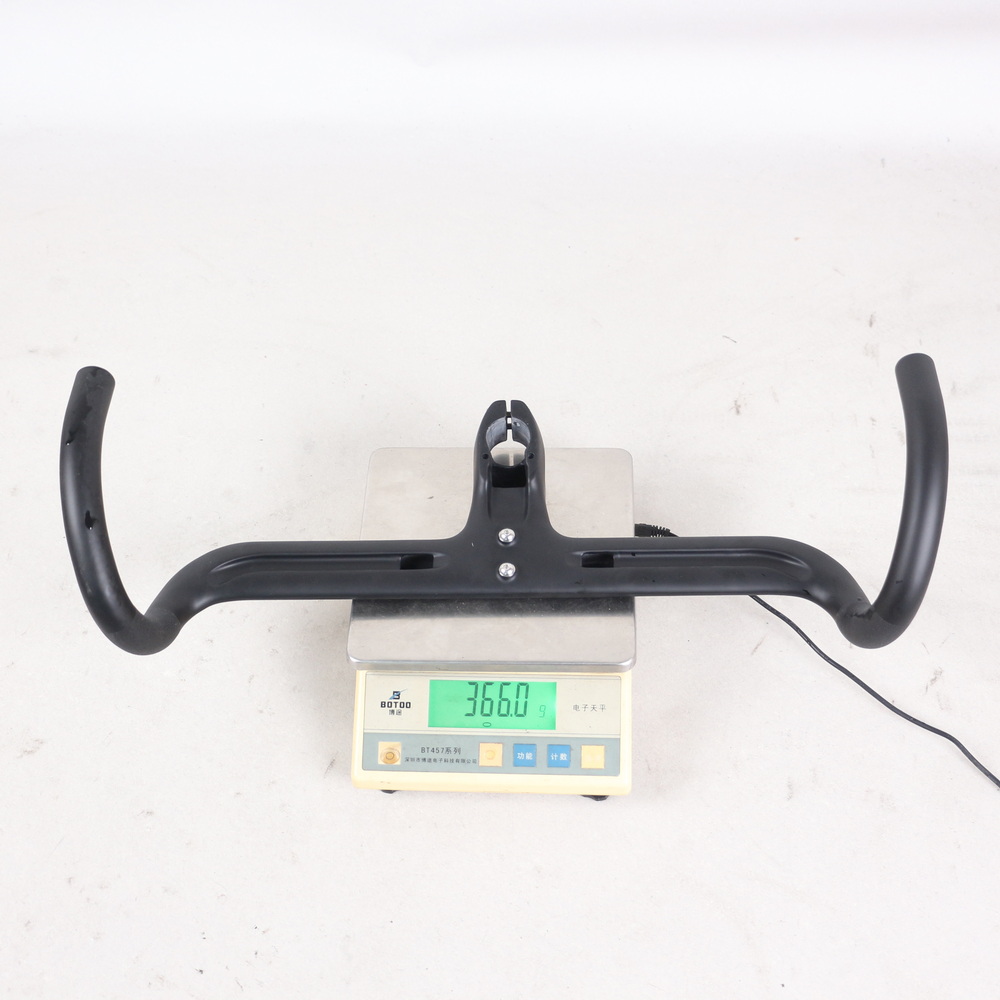

| HB047 Handlebar weight： | 366/+-20g |
| Thru axle : | Front 12x100mm , Rear 12x142mm |
| Wheels size: | 700*57C |
| Drop out | UDH dropout |
| Cable Plug: | Internal cable |
| Group set: | Machine and Di2 compatible |
| Disc Rotor: | Front and Rear 140mm , if 160mm need add adaptor |
| Tested: | SGS |
| Warranty: | 2 years |

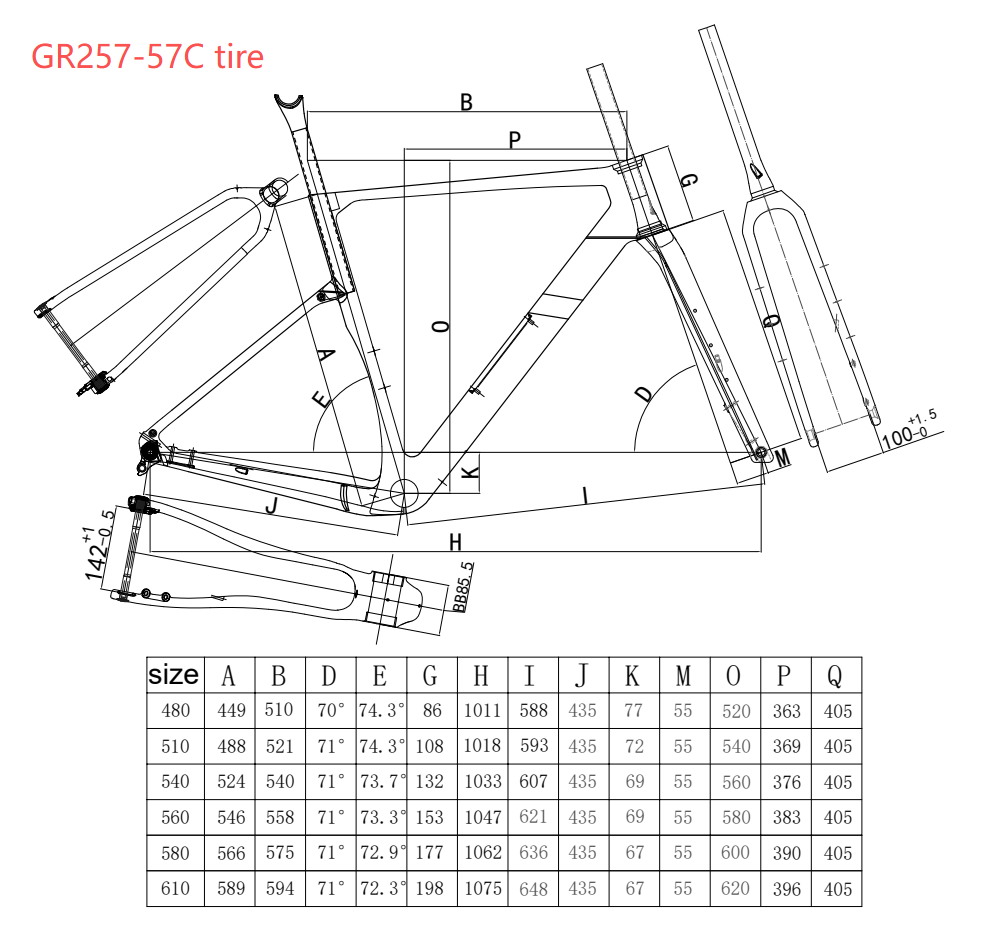

Geometry

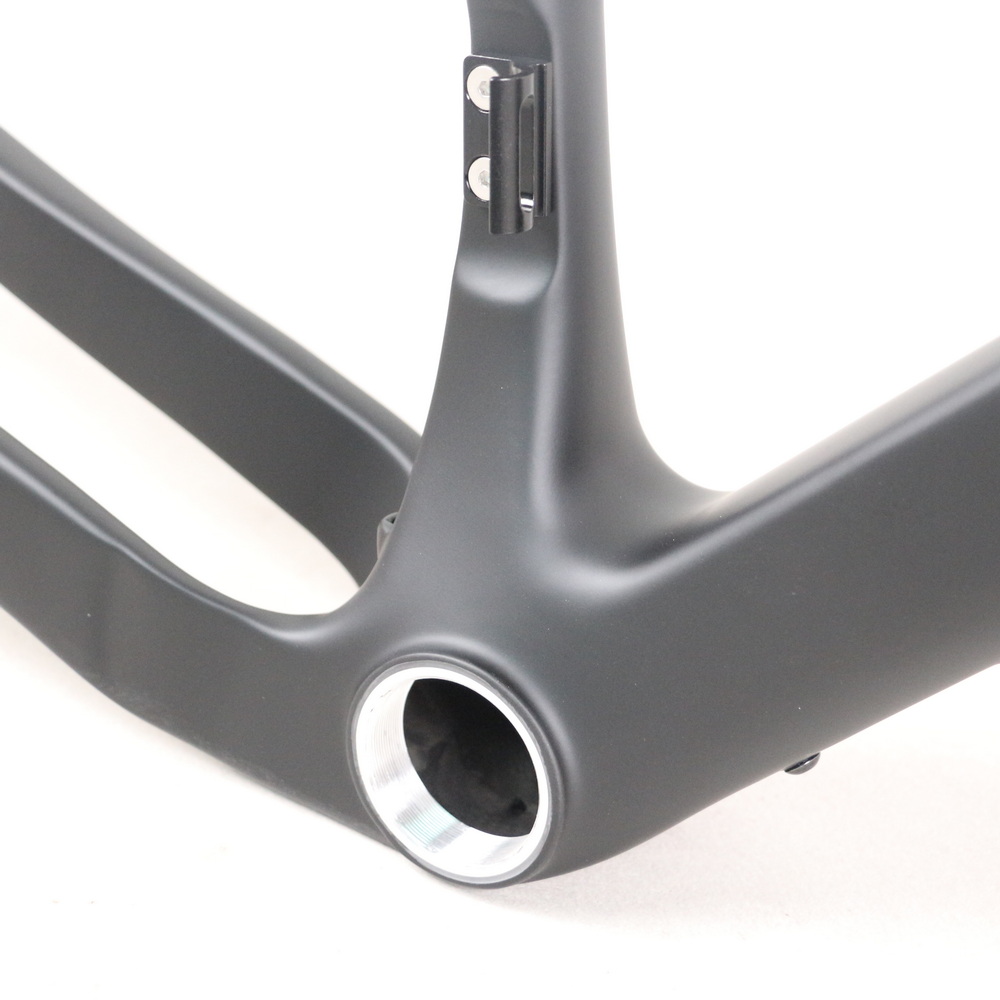

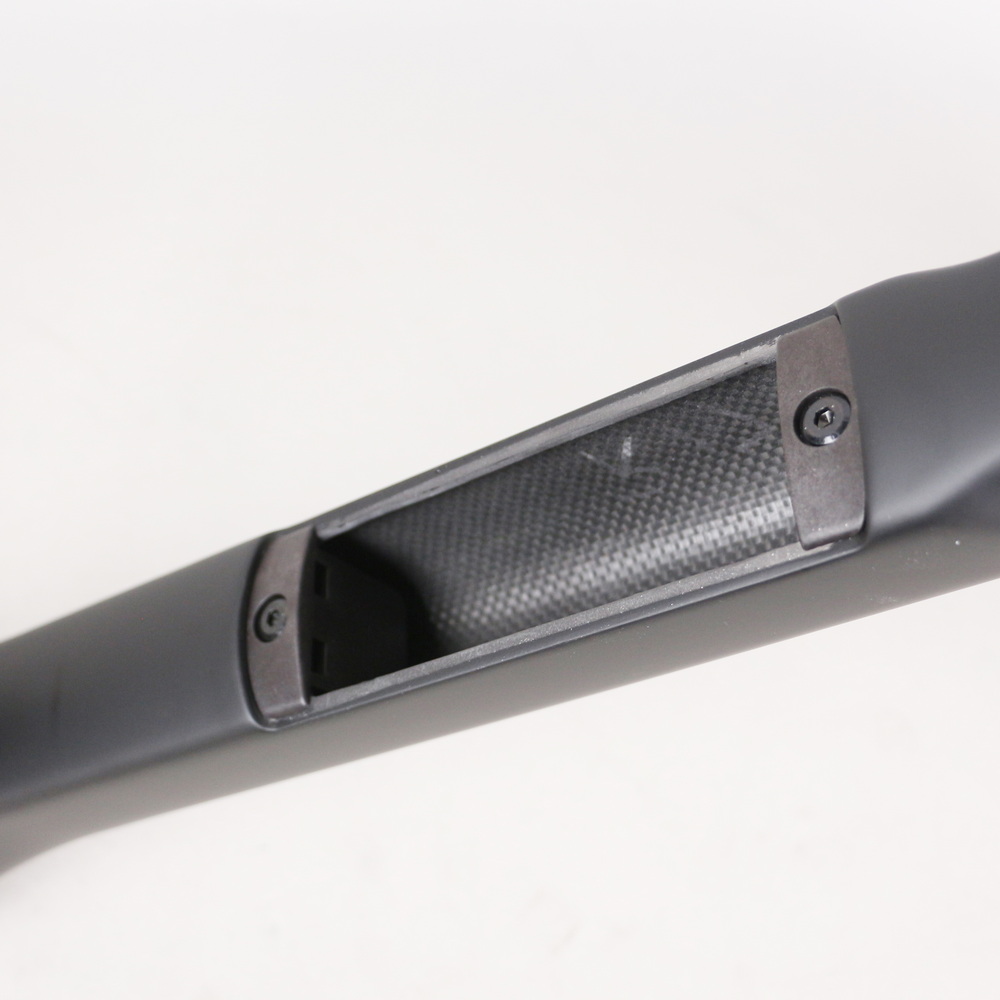

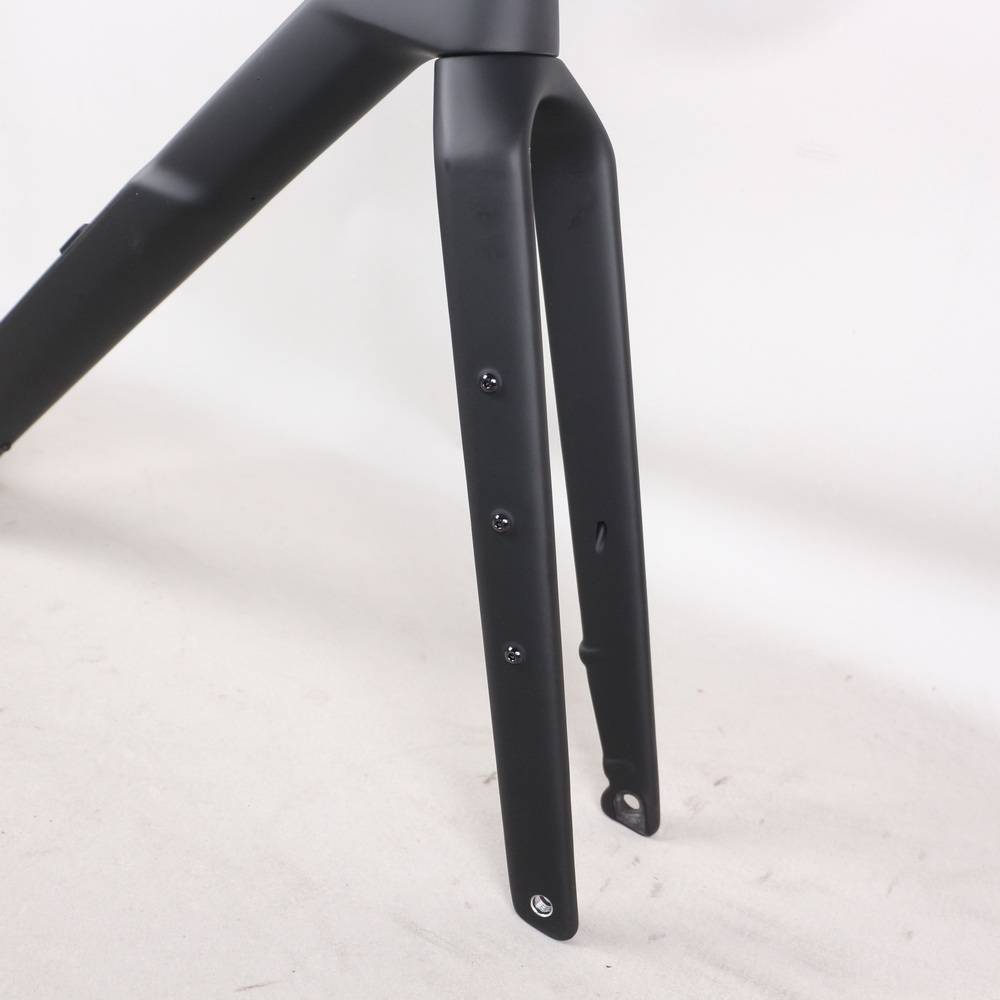

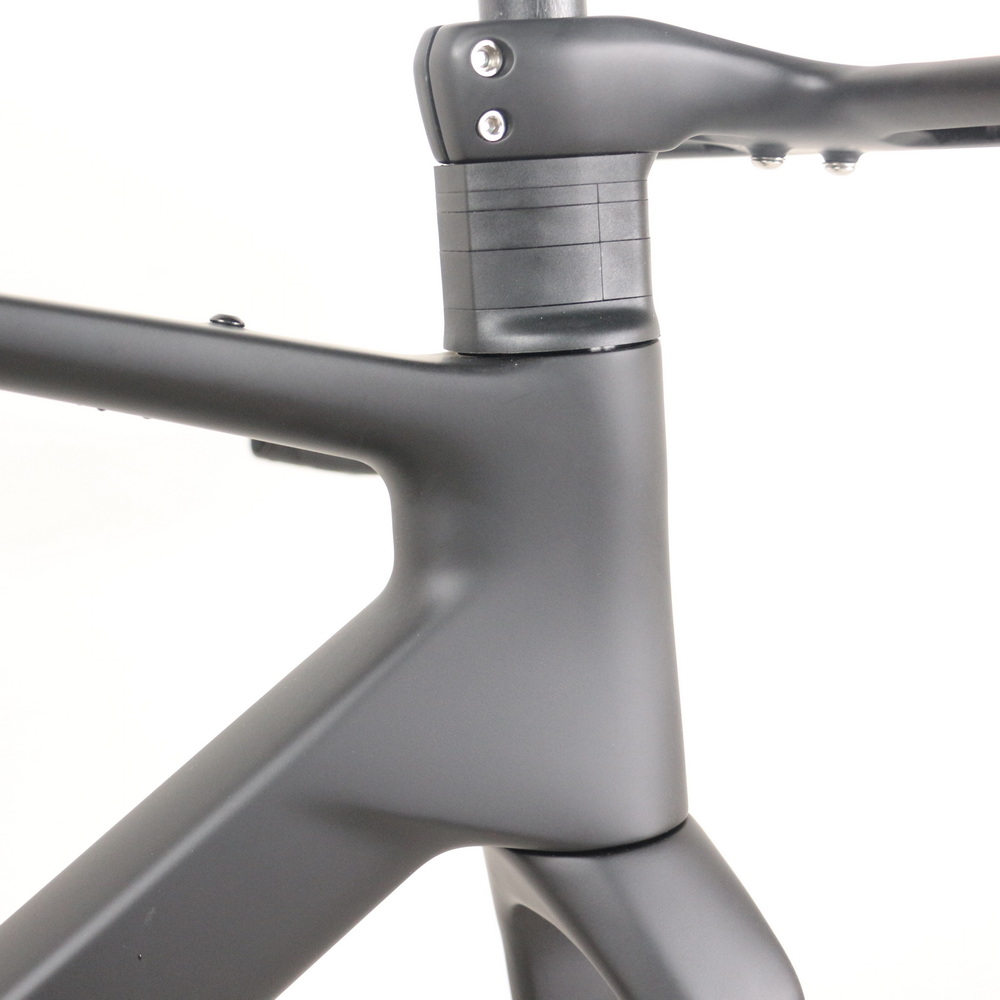

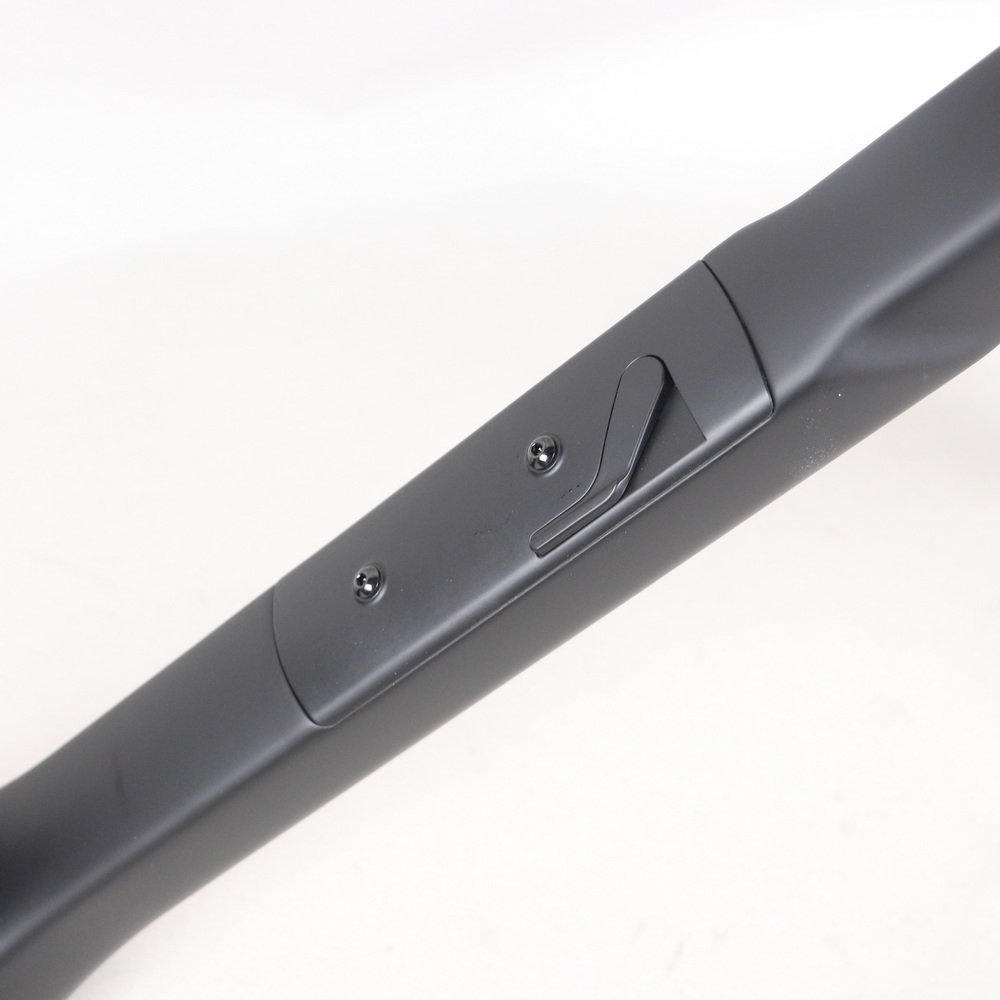

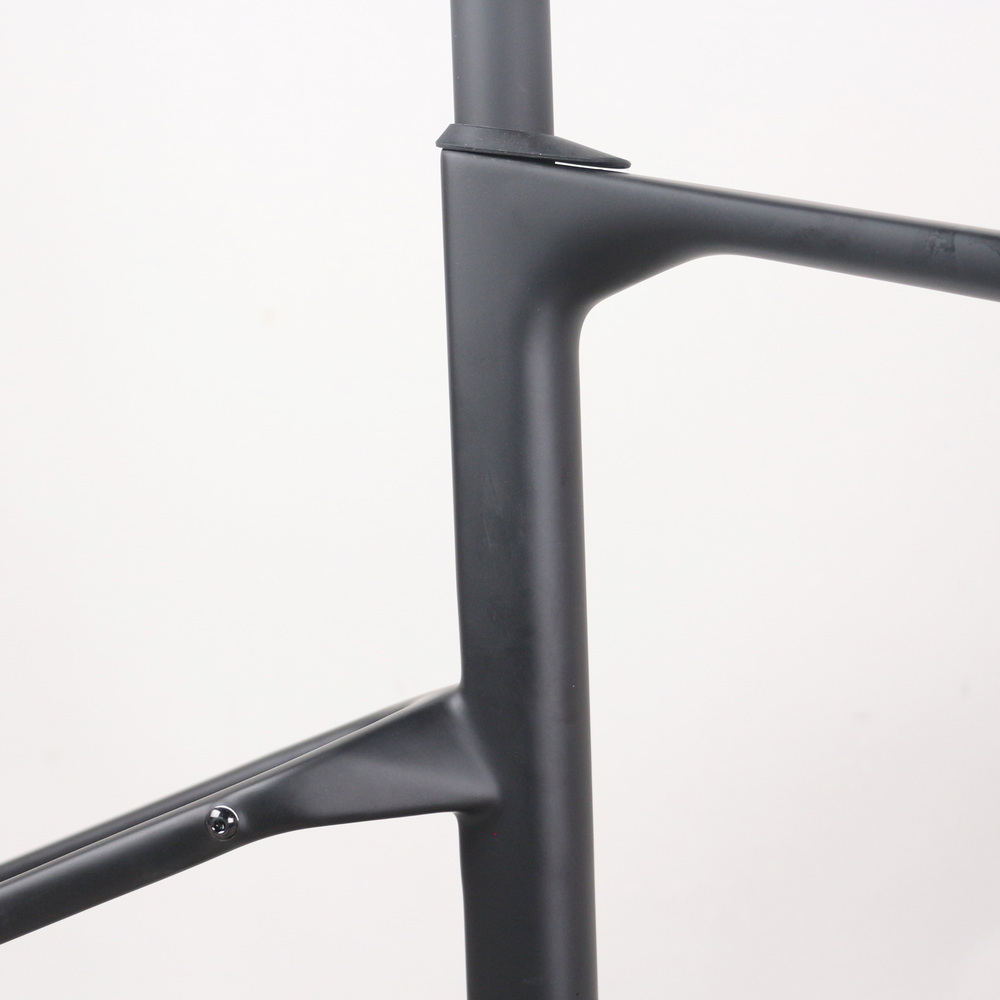

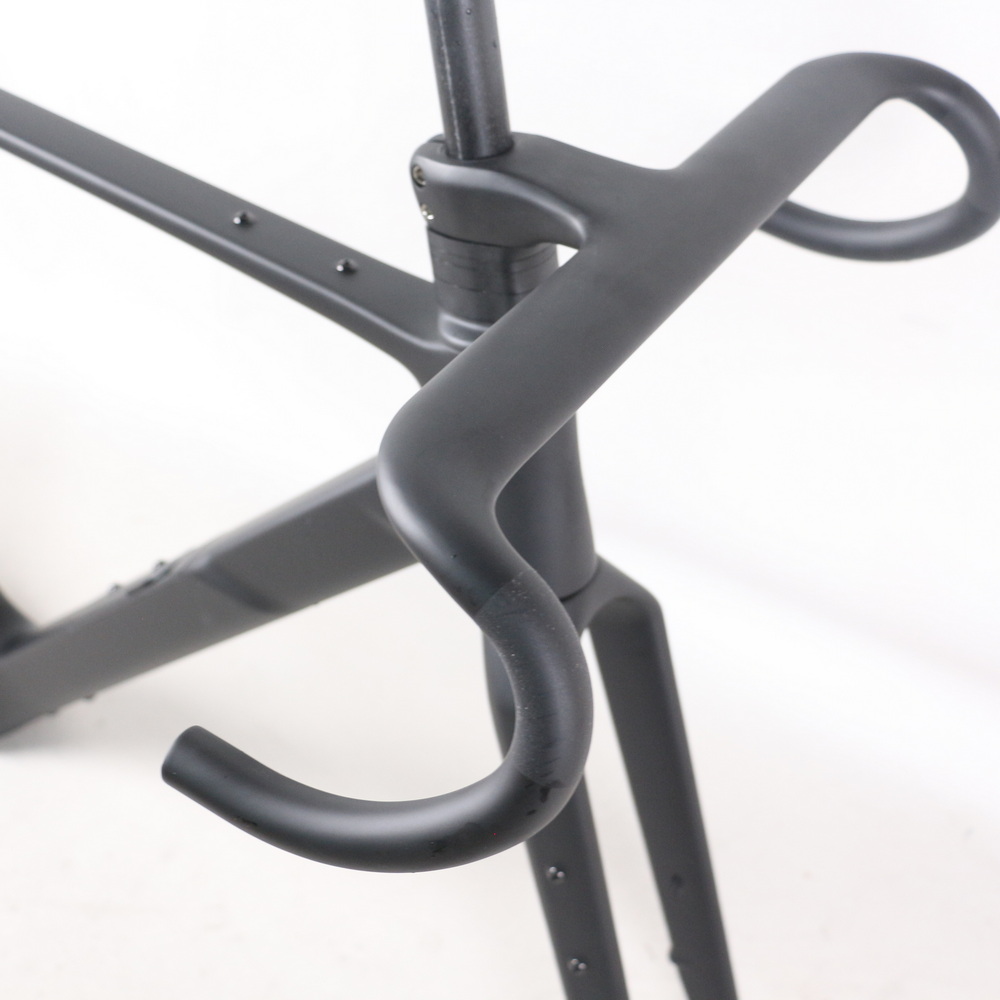

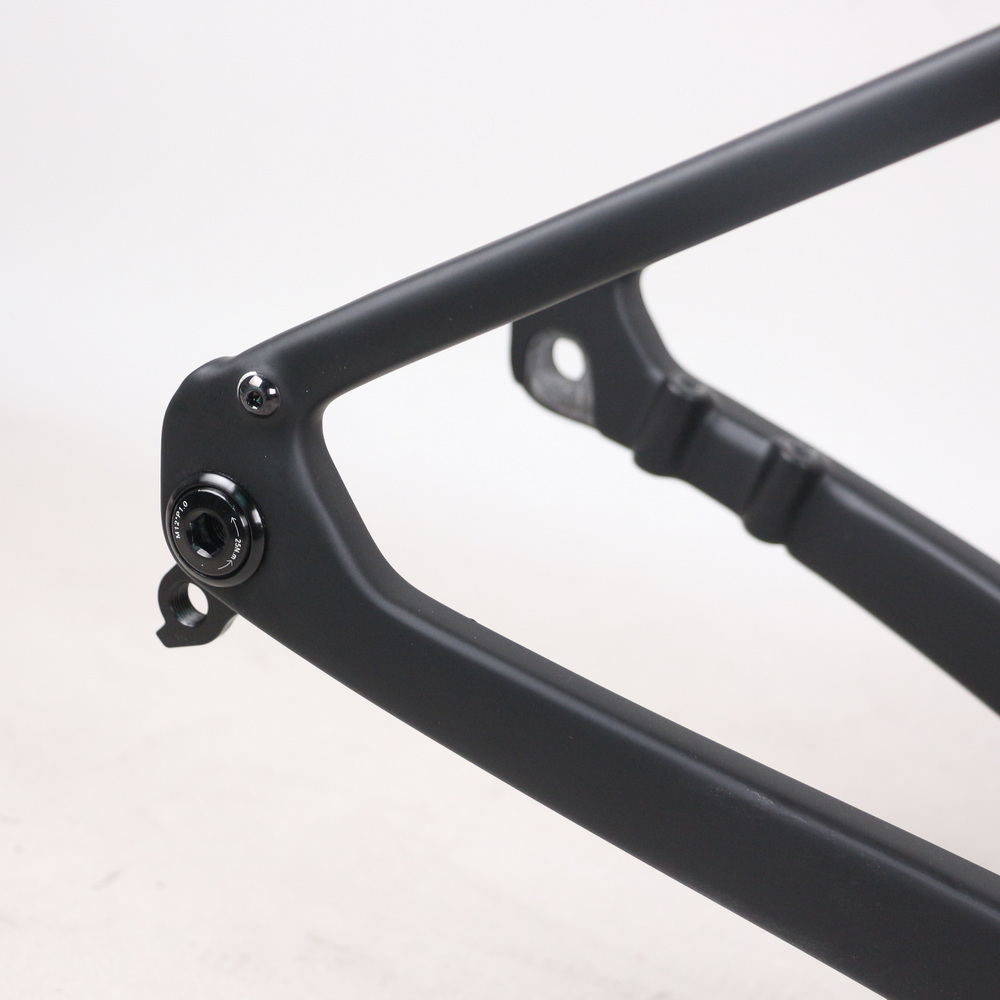

Frame Detail images

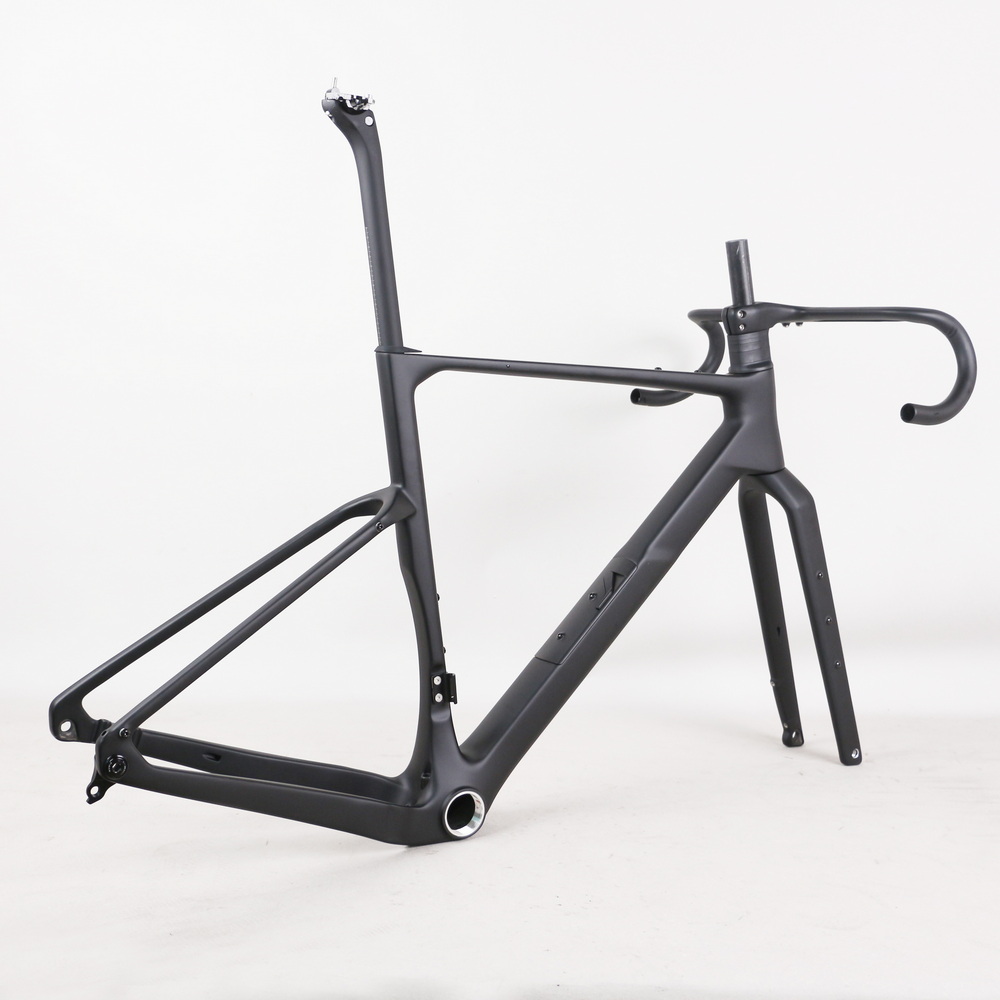

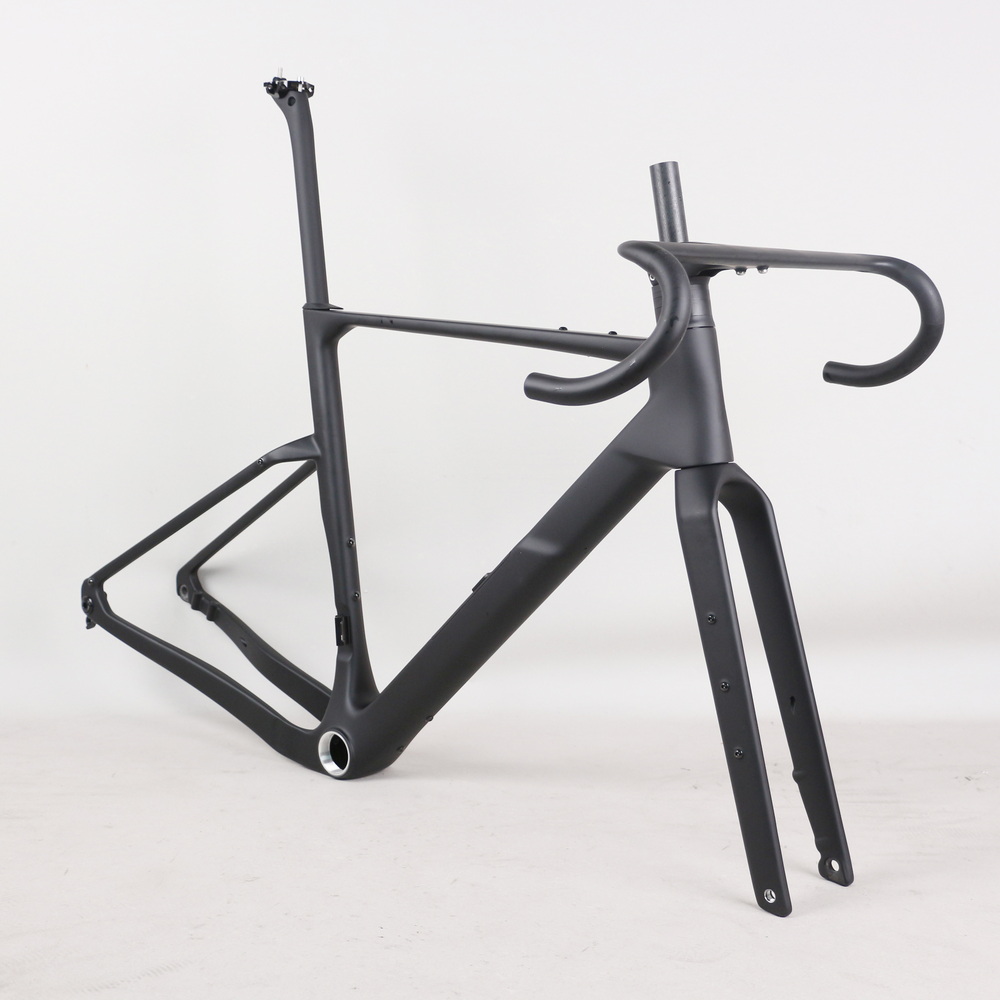

Below picture frame size 54cm
Foctory test
Shipping
FAQ
