SERAPH

UDH Full Internal Cable Disc Brake Gravel Bike Frame GR209 T47 Thread Bottom Bracket Max Tire 700*50C Available Size 46/49/52/55

reviews
Price:
$529.00 $899.00 piece
Size
  • 44MM
  • 46MM
  • 49MM
  • 52MM
  • 55MM
Color
  • Black matte+handlebar+thru axleBlack matte+handlebar+thru axle
  • Black matte+thru axle+without handlebarBlack matte+thru axle+without handlebar
  • custom 1 paint+handlebar+thru axle
  • custom 1 paint++thru axle+without handlebar
Stem
  • 70MM
  • 80MM
  • 90MM
  • 100MM
  • 110MM
  • 120MM
Bar
  • 360MM
  • 380MM
  • 400MM
  • 420MM
20items available
Total:$529.00
Contact Us

Description


Please note the size of the integrated handlebar when placing an order:

Stem Size: 70/80/90/100/110/120mm
Handlebar size: 430/450/470/490mm

  • Product information

    Item:GR209-Gravel
    Frame size:44/46/49/52/55
    Seat Post:27.2mm
    Material:Toray T1000 carbon+Blow molding technology
    Head tube: 1 -1/2 "above and 1 -1/2" below
    Stem Size:70/80/90/100/110/120mm
    Handlebar size:430/450/470/490mm

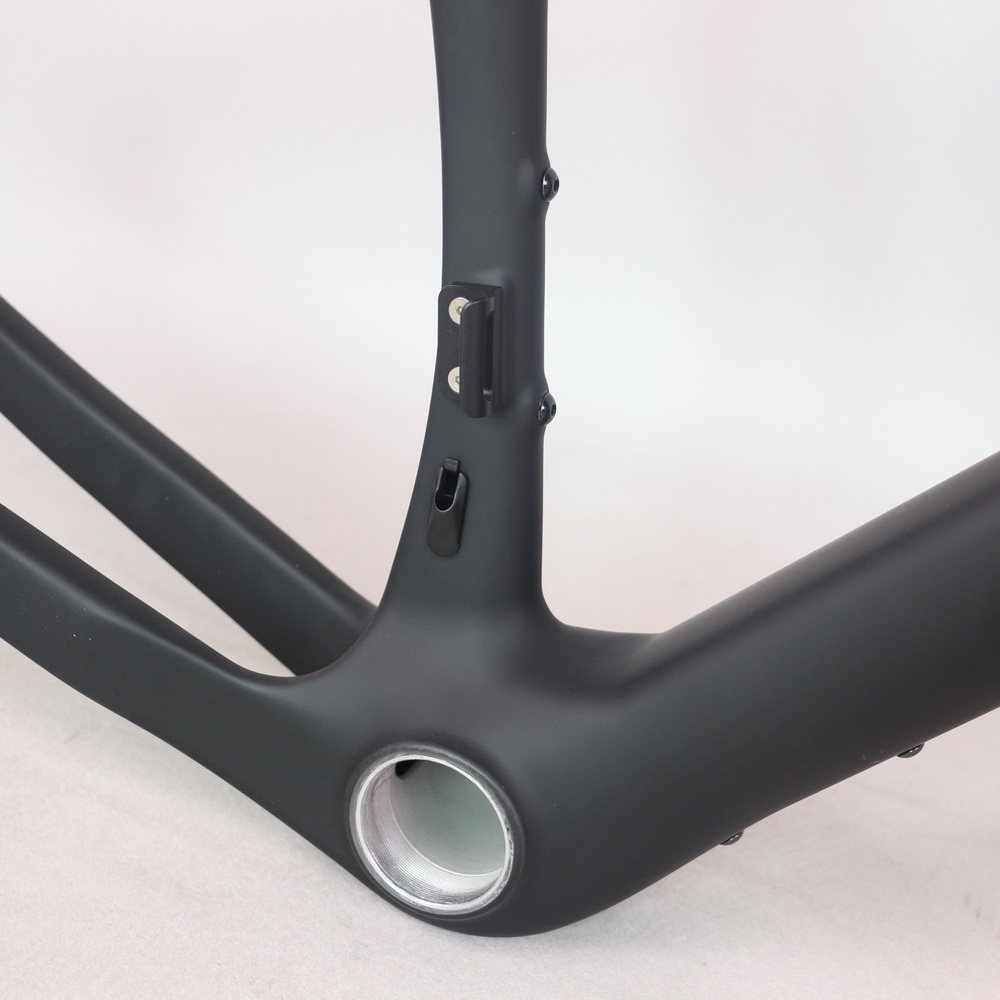

    Bottom Bracket: T47 thread
    Brake TypeFlat mount Disc

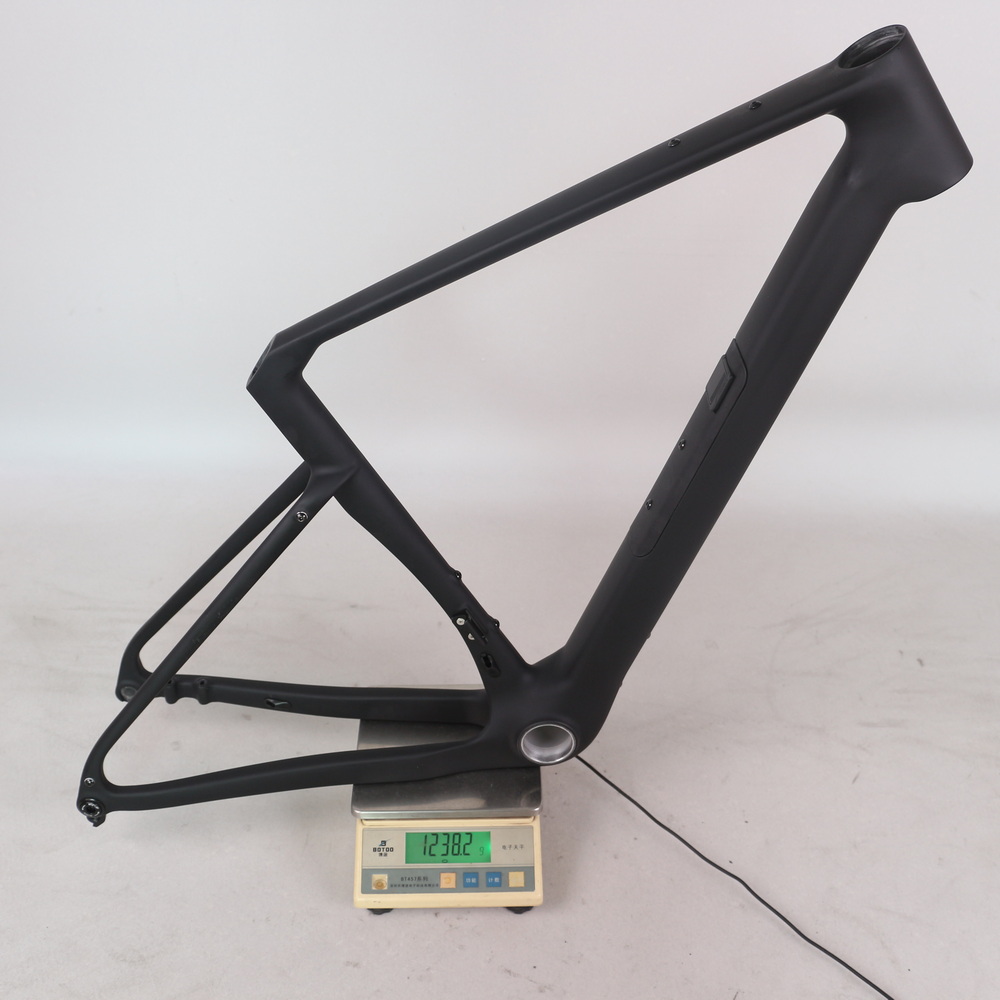

    Frame Weight:1238/+-40g(46CM)

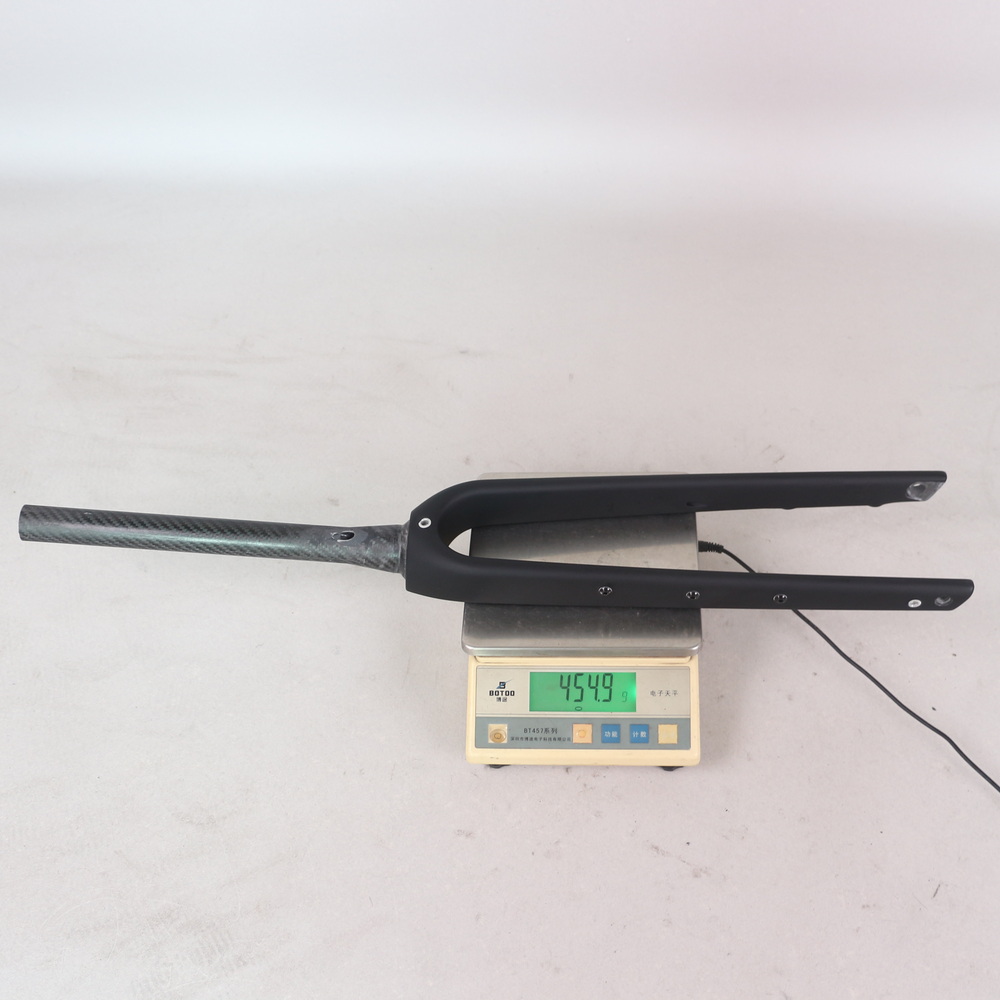

    Fork weight：455/+-30g

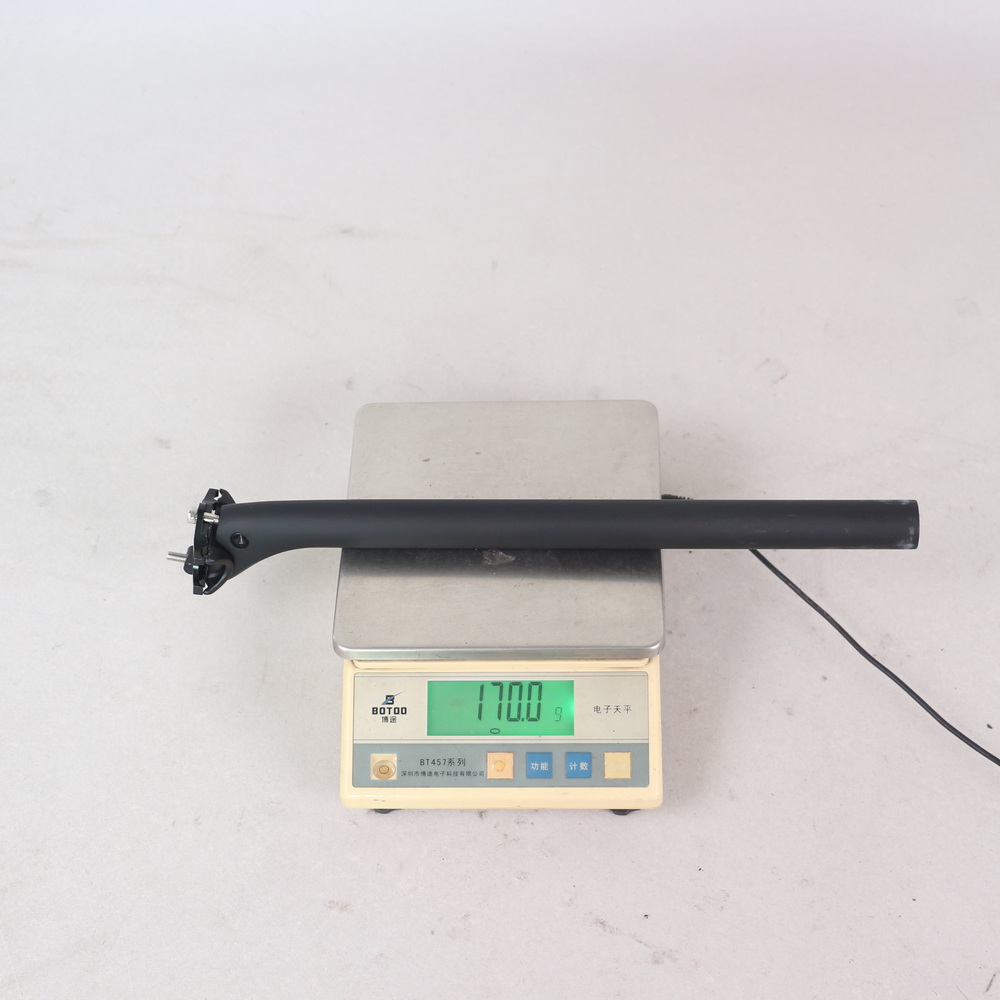

    seatpost weight170/+-20g

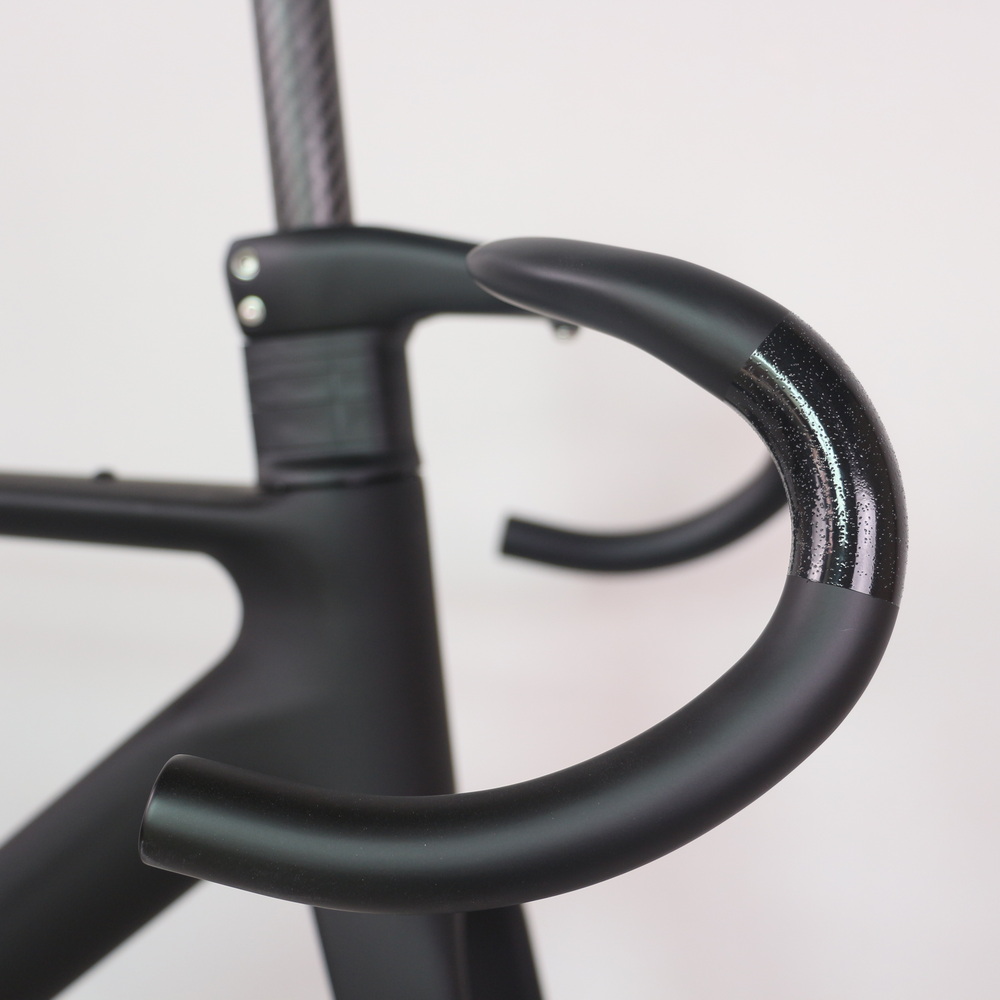

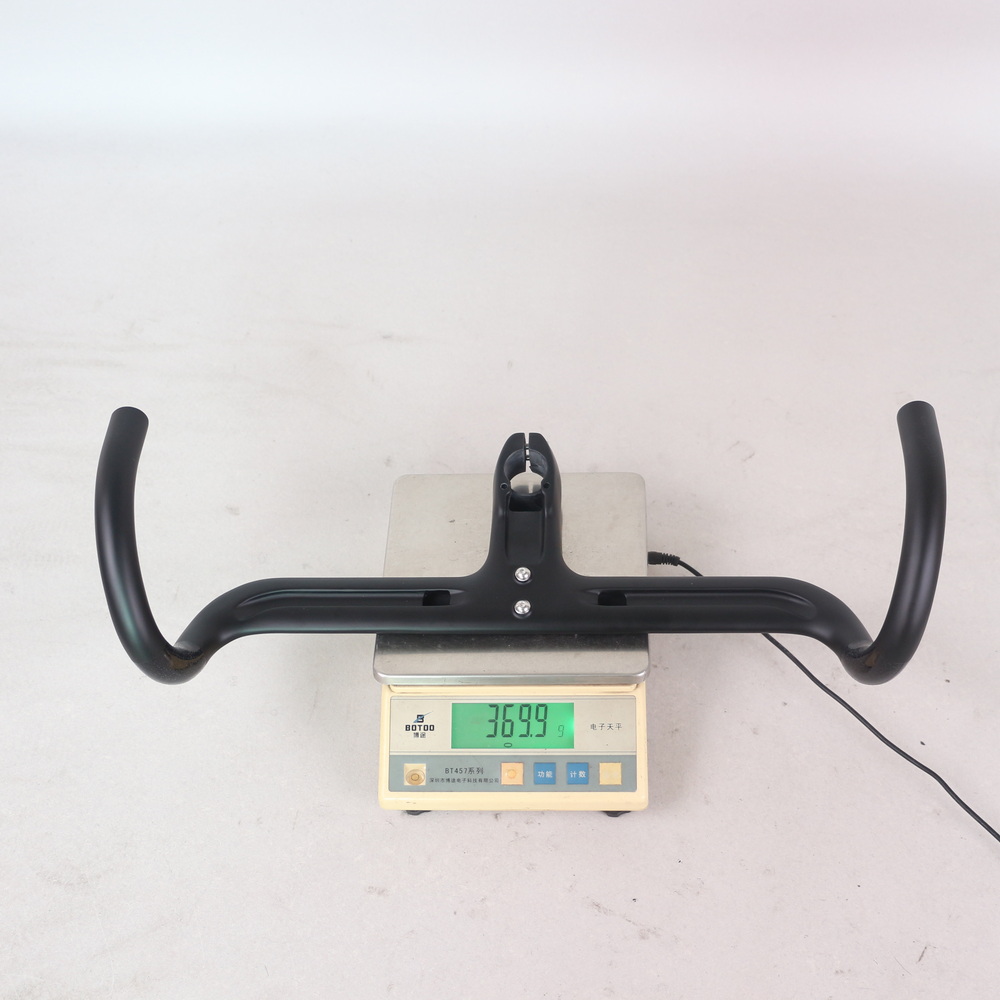

    HB047 Handlebar weight：369/+-20g
    Single speed Crankset：46T
    Double speed Crankset：52-36T
    Thru axle :Front 12x100mm , Rear 12x142mm
    Wheels size:700*47C
    Drop outUDH dropout
    Cable Plug:Internal cable
    Group set:Machine and Di2 compatible
    Disc Rotor:
    If use 160mm disc rotor need use 140mm adapter;                          If  use 180mm disc rotor need use 160mm adapter
    Warranty:2 years

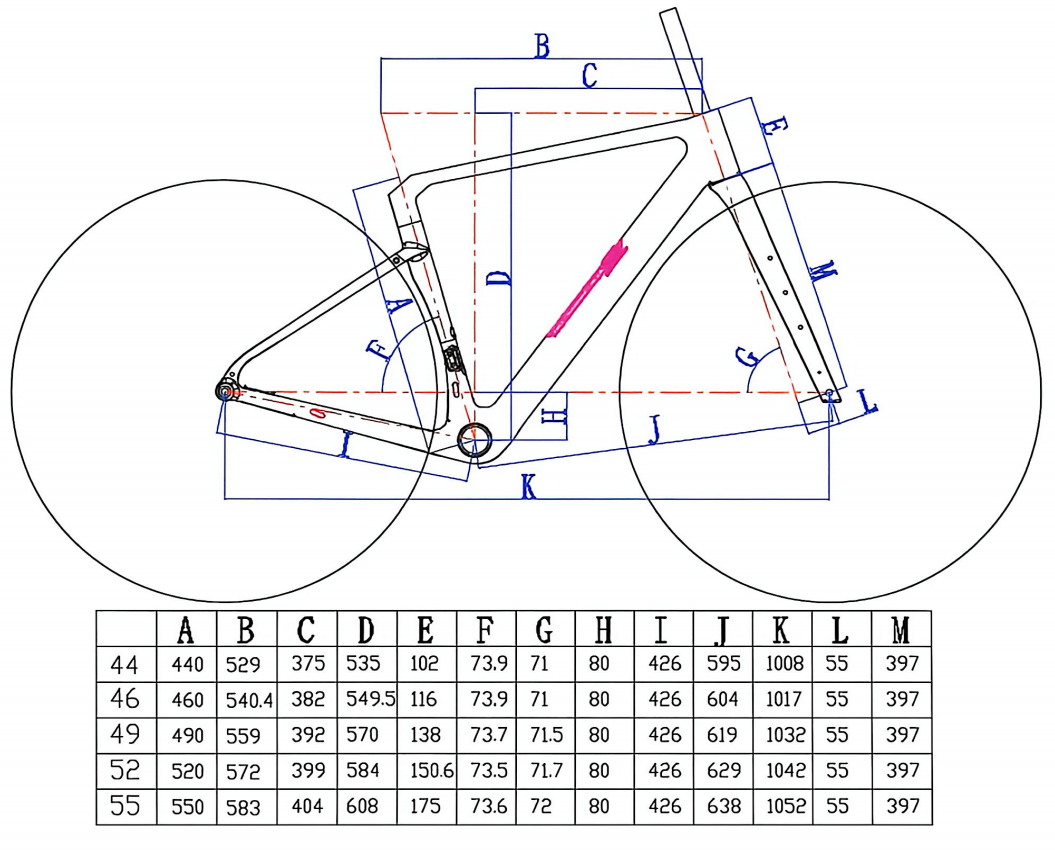

Geometry

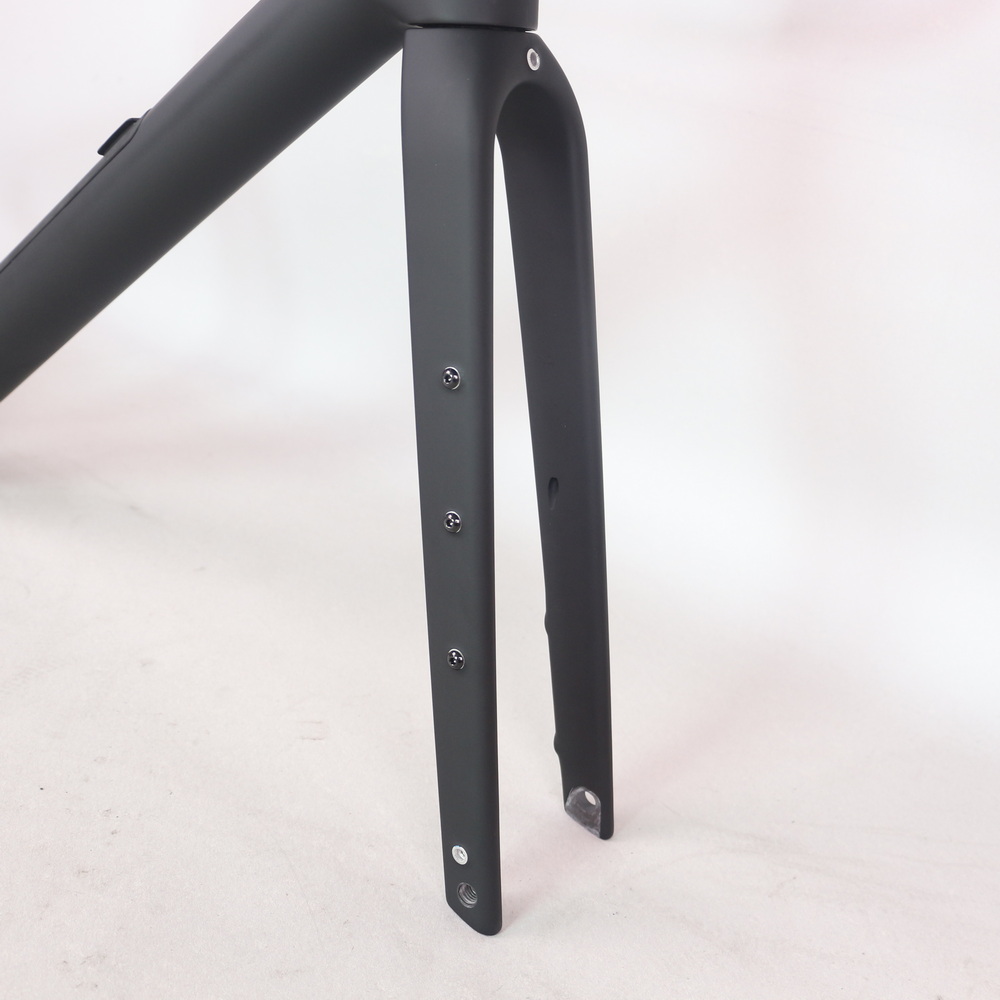

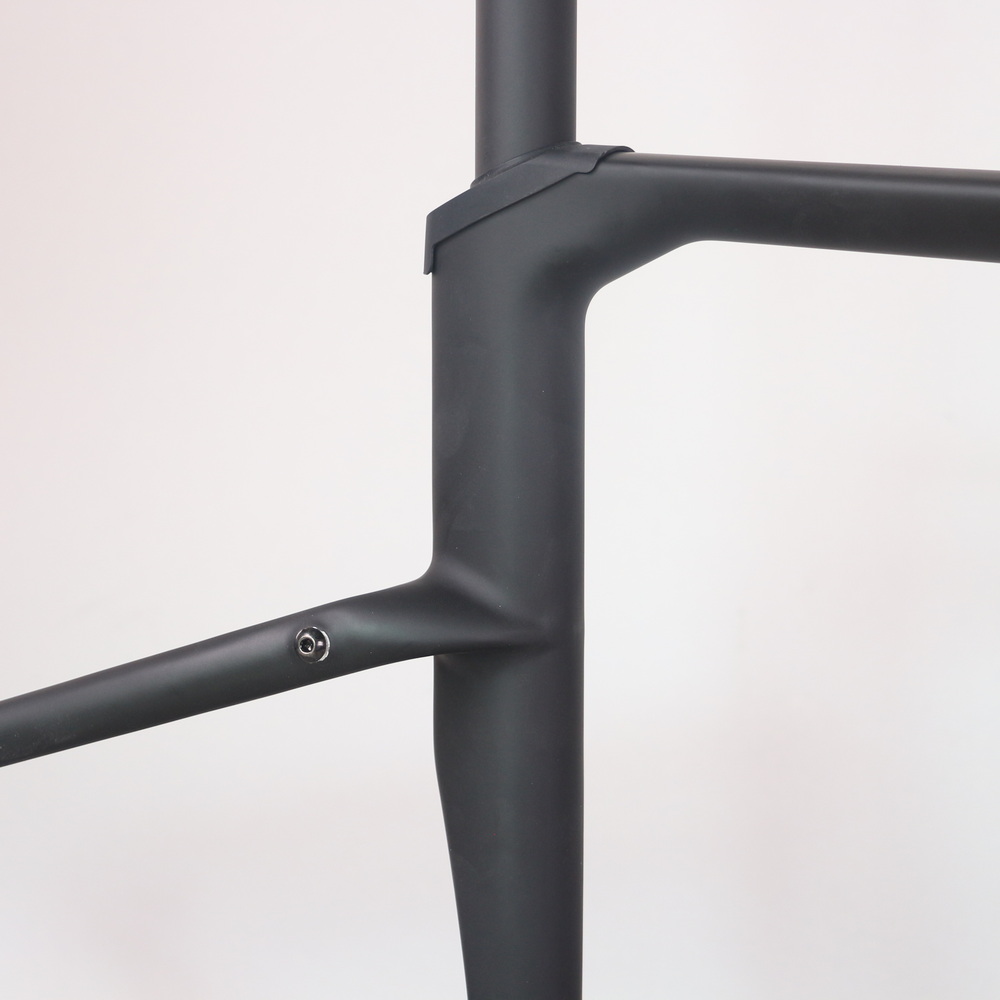

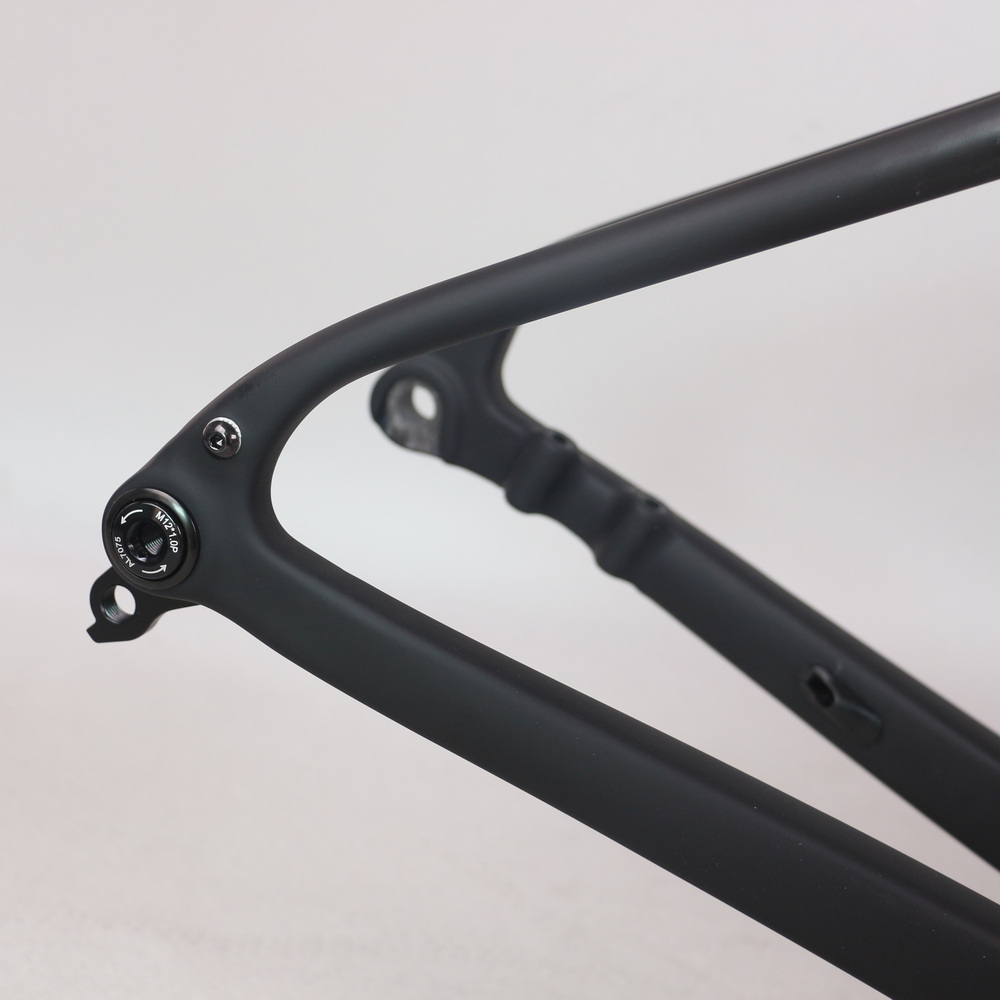

Detail images

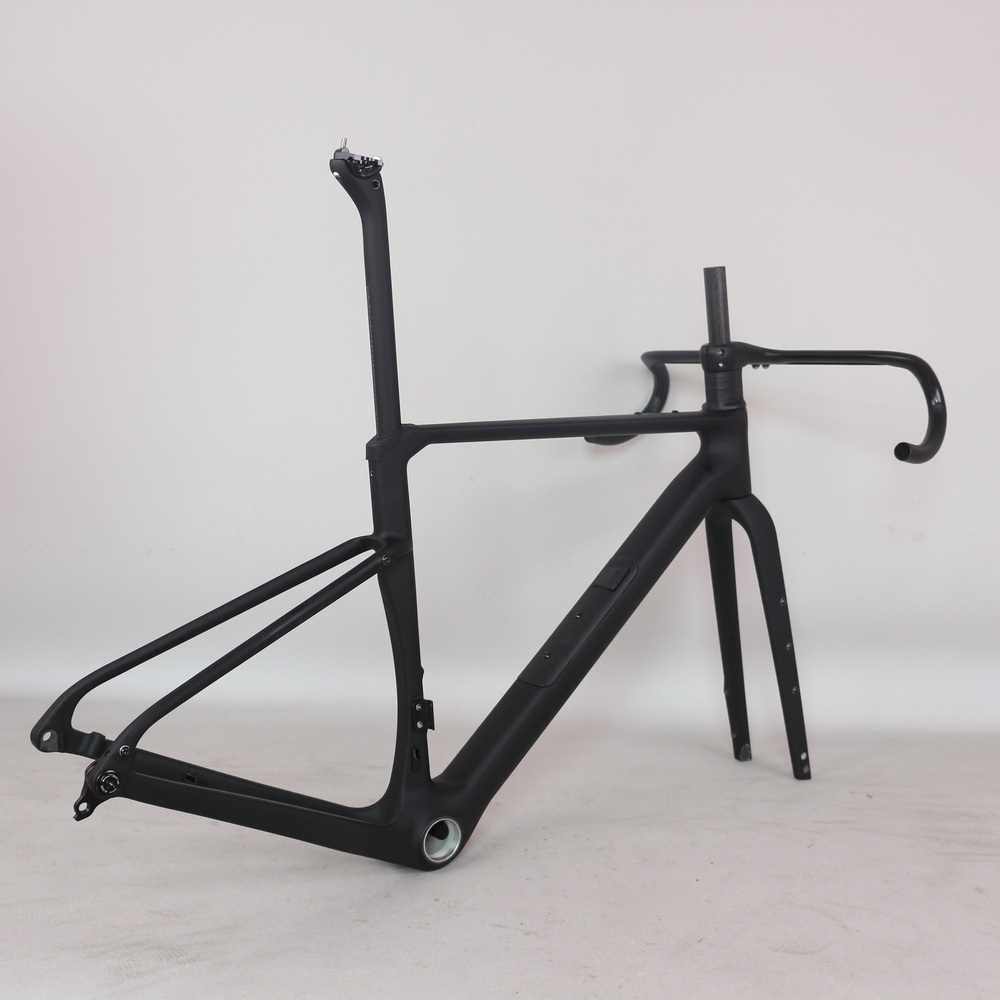

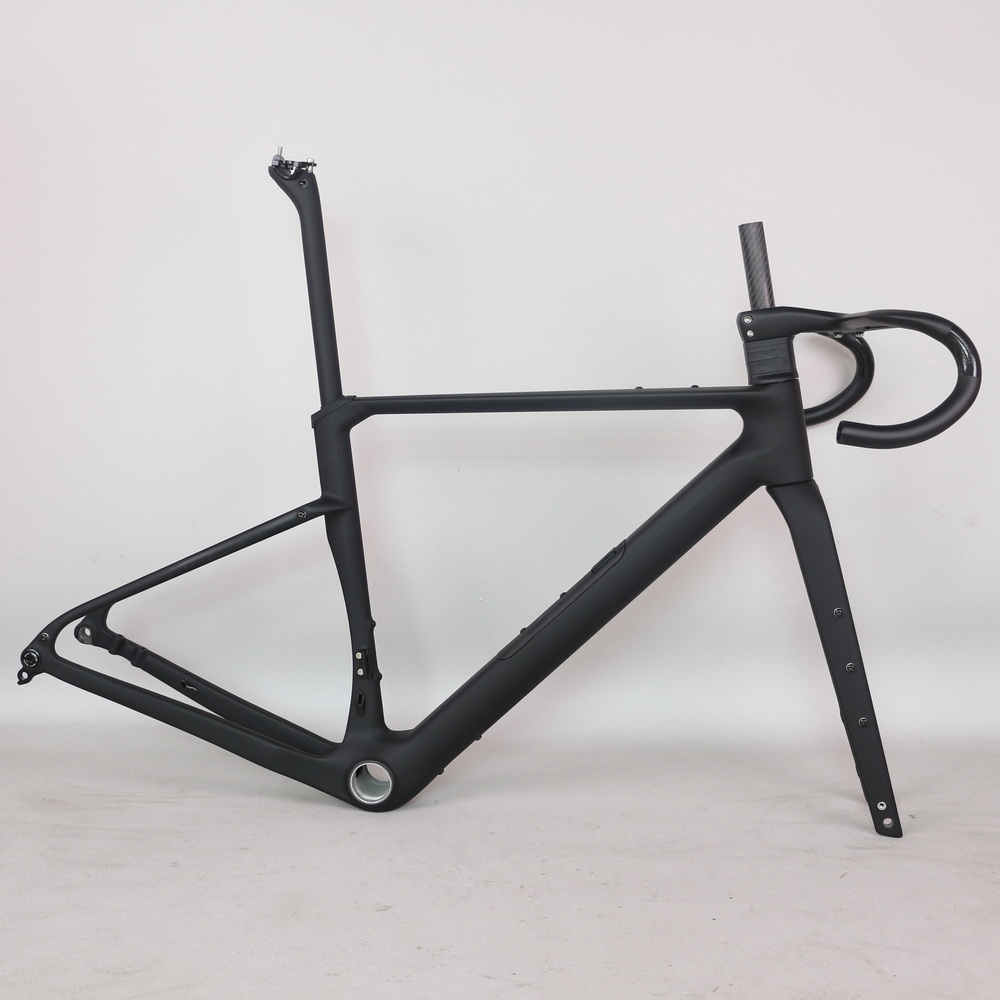

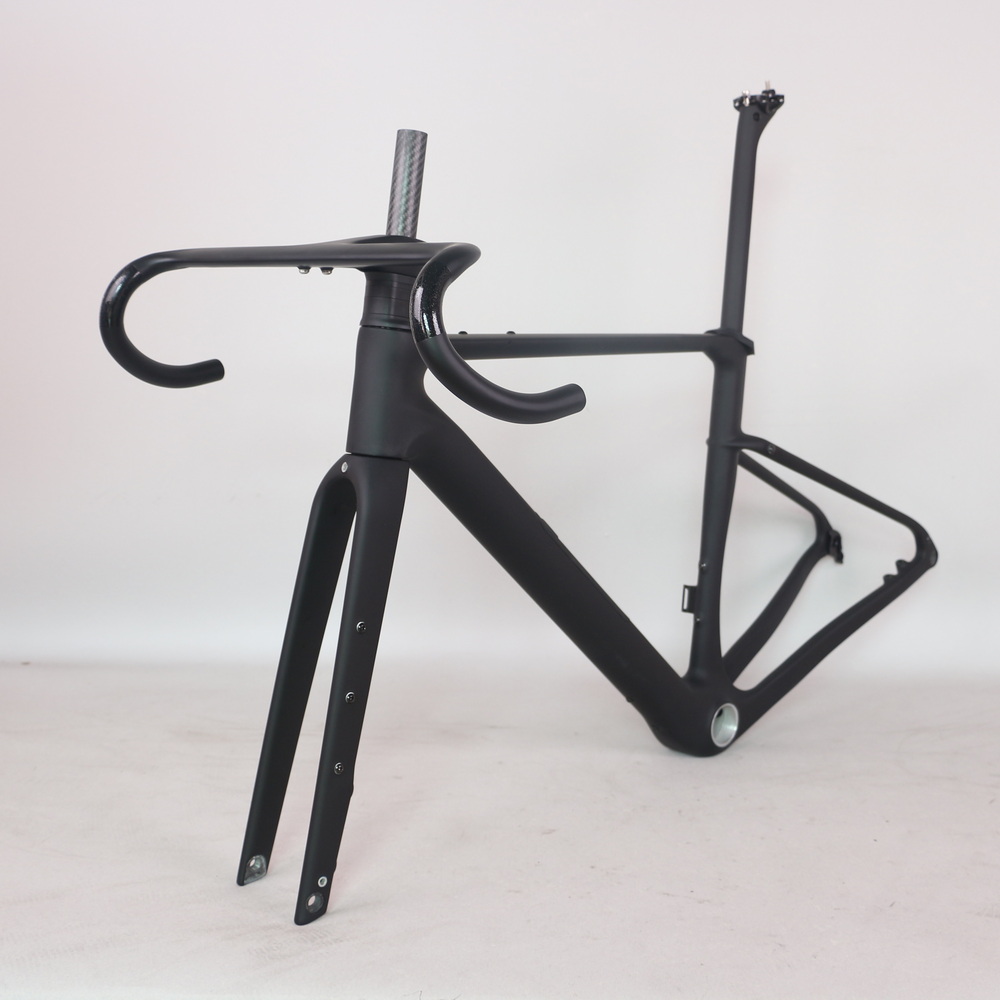

below picture frame size is 46cm



Package
