SERAPH
Description
Note: If you select "custom 1 paint,"
please find the color code at the link below and include it in the order notes as: "Color Code + matte or glossy finish."
Common color codes: https://photos.app.goo.gl/AzHf1tWZXZ1nwE2k7
information
| Item: | GR356-Gravel |
| Seat Post: | 27.2mm, support dropper seatpost |
| Material: | Toray T800+1000 carbon |
| Head tube: | 1 -1/2 "above and 1 -1/2" below |
| Frame Size： | S/M/L/XL |
| Stem Size: | 70/80/90/100/110/120mm |
| Handlebar size: | 430/450/470/490mm |
| Bottom Bracket: | T47 thread |
| Brake Type | Flat mount Disc |

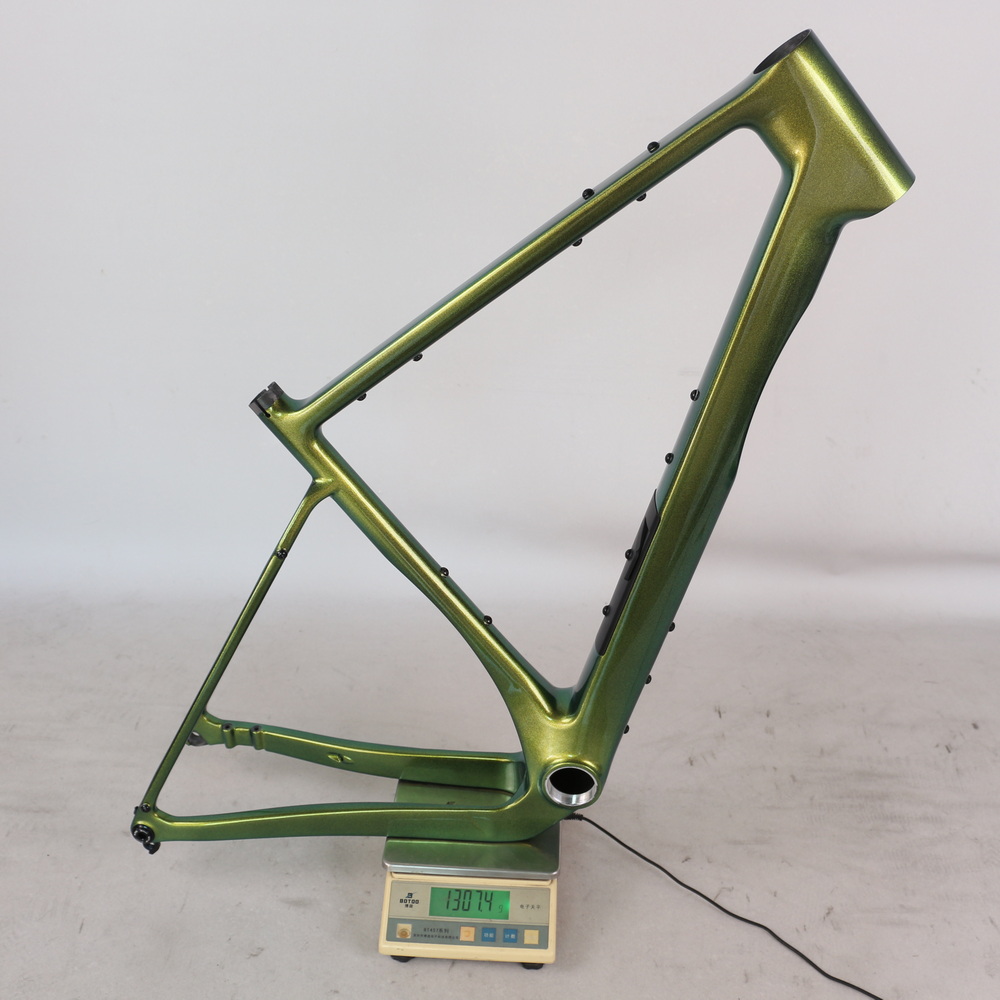

| Frame Weight: | 1307/+-40g |
| version 1 Fork weight： | 519/+-40g |
| version 2 Fork weight： | 523/+-40g |
| seatpost weight | 164/+-30g |
| HB047 Handlebar weight： | 365/+-30g |
| Thru axle : | Front 12x100mm , Rear 12x142mm |
| Wheels size: | 700*61C/29*2.4 |
| Drop out | UDH dropout |
| Single speed Crankset： | Only supports single disk 52T |
| Double speed Crankset： | Not supported |
| Cable Plug: | Internal cable |
| Group set: | Machine and Di2 compatible |
| Disc Rotor: | Front and Rear 140mm , if 160mm need add adaptor |
| Warranty: | 2 years |
Geometry

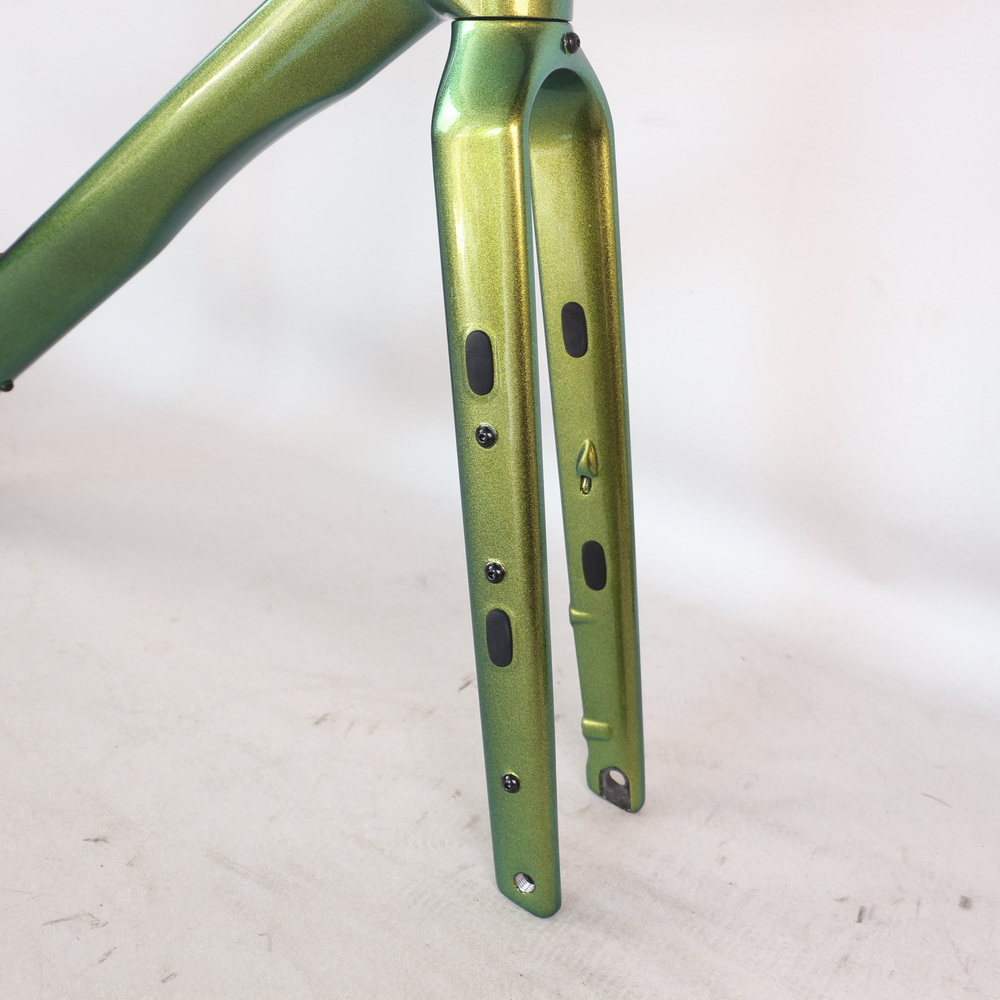

Fork version 1 Frame Detail images
Below picture frame size M
color number YS3080-1 chameleon green glossy

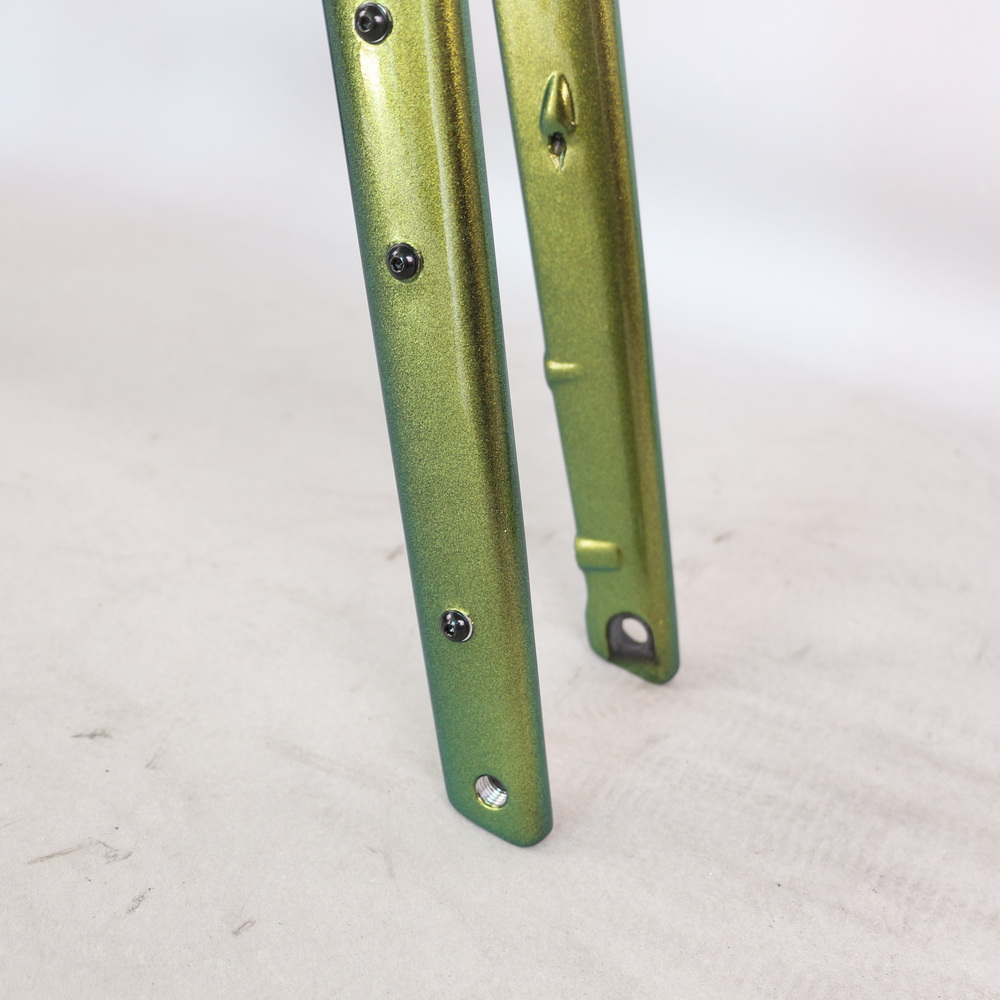

Fork version 2 Frame Detail images
Below picture frame size M
color number YS3080-1 chameleon green glossy
Foctory test
